图床：Backblaze B2 (私密桶) + Cloudflare Workers + PicGo

使用Backblaze B2私密桶、Cloudflare Workers和PicGo搭建安全可靠的个人图床方案

前言

图床是博客写作中必不可少的工具，一个好的图床不仅要保证图片访问速度快，而且要安全可靠。本文将介绍如何使用Backblaze B2的私密存储桶、Cloudflare Workers和PicGo搭建一个既安全又高效的个人图床方案。

方案优势

安全性高：使用Backblaze B2私密桶存储，避免直接暴露图片URL
访问速度快：通过Cloudflare CDN加速访问
成本低廉：Backblaze B2存储费用极低，Cloudflare Workers有免费额度
使用便捷：配合PicGo实现一键上传

步骤一：注册并配置Backblaze B2

1. 注册Backblaze账号

首先访问Backblaze官网注册一个账号。

2. 创建私有存储桶

登录Backblaze B2控制台
点击”创建存储桶”按钮
输入存储桶名称（自定义，全局唯一）
选择”私有”作为存储桶类型
其他选项保持默认
点击”创建”按钮完成创建

重要提示：创建完成后，请记得复制您的存储桶名称及Endpoint，后续配置会用到

3. 创建应用密钥

在B2控制台中点击”Application Keys”
点击”Add a New Application Key”
输入密钥名称（可随意命名）
其他选项保持默认
点击创建按钮

重要提示：创建完成后，请立即复制显示的KeyID和applicationKey，这些信息只会显示一次！

步骤二：配置Cloudflare Workers

1. 创建Workers

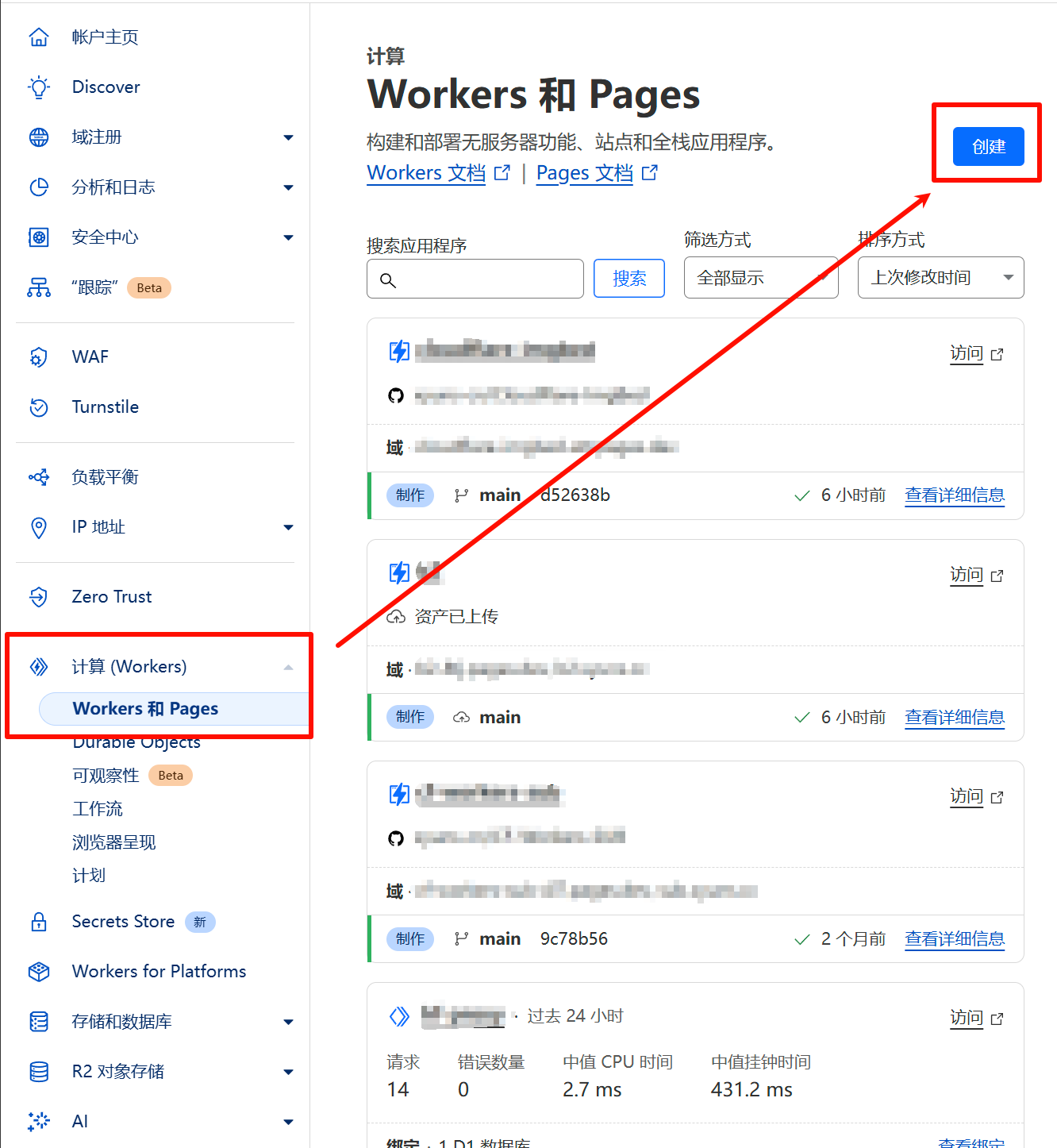

登录Cloudflare控制台
进入”Workers”页面
点击”创建”按钮

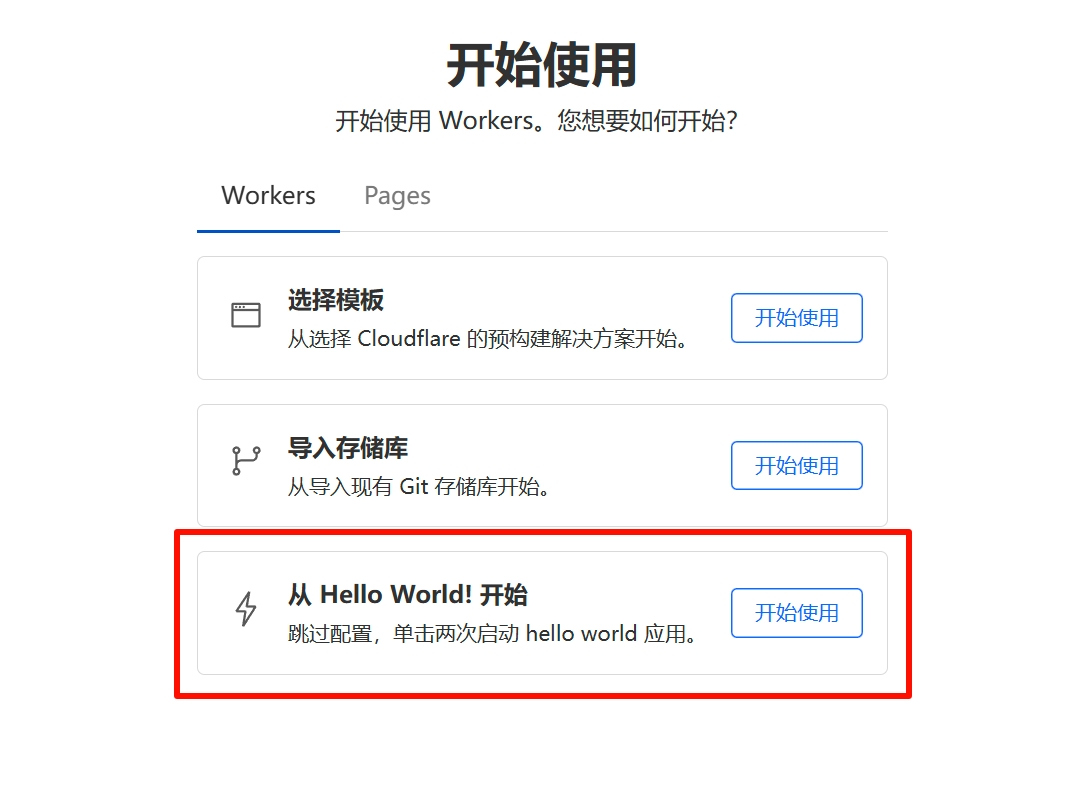

选择”从Hello World!开始”
给Workers命名
点击”部署”按钮

2. 编辑代码

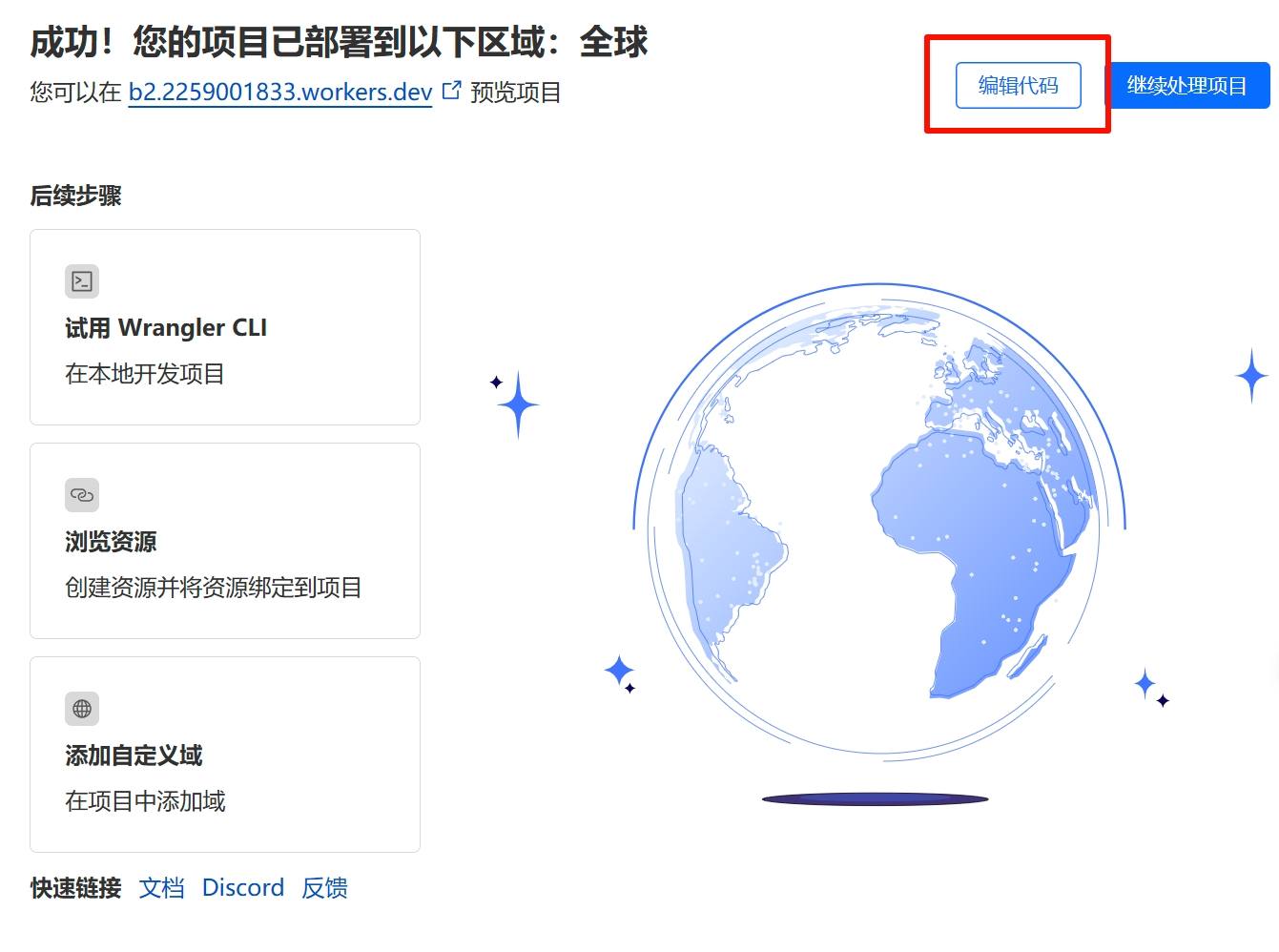

点击”编辑代码”按钮

将下面的代码粘贴到编辑器中

// node_modules/aws4fetch/dist/aws4fetch.esm.mjs
var encoder = new TextEncoder();
var HOST_SERVICES = {
  appstream2: "appstream",
  cloudhsmv2: "cloudhsm",
  email: "ses",
  marketplace: "aws-marketplace",
  mobile: "AWSMobileHubService",
  pinpoint: "mobiletargeting",
  queue: "sqs",
  "git-codecommit": "codecommit",
  "mturk-requester-sandbox": "mturk-requester",
  "personalize-runtime": "personalize"
};
var UNSIGNABLE_HEADERS = /* @__PURE__ */ new Set([
  "authorization",
  "content-type",
  "content-length",
  "user-agent",
  "presigned-expires",
  "expect",
  "x-amzn-trace-id",
  "range",
  "connection"
]);
var AwsClient = class {
  constructor({ accesskeyID, secretAccessKey, sessionToken, service, region, cache, retries, initRetryMs }) {
    if (accesskeyID == null)
      throw new TypeError("accesskeyID is a required option");
    if (secretAccessKey == null)
      throw new TypeError("secretAccessKey is a required option");
    this.accesskeyID = accesskeyID;
    this.secretAccessKey = secretAccessKey;
    this.sessionToken = sessionToken;
    this.service = service;
    this.region = region;
    this.cache = cache || /* @__PURE__ */ new Map();
    this.retries = retries != null ? retries : 10;
    this.initRetryMs = initRetryMs || 50;
  }
  async sign(input, init) {
    if (input instanceof Request) {
      const { method, url, headers, body } = input;
      init = Object.assign({ method, url, headers }, init);
      if (init.body == null && headers.has("Content-Type")) {
        init.body = body != null && headers.has("X-Amz-Content-Sha256") ? body : await input.clone().arrayBuffer();
      }
      input = url;
    }
    const signer = new AwsV4Signer(Object.assign({ url: input }, init, this, init && init.aws));
    const signed = Object.assign({}, init, await signer.sign());
    delete signed.aws;
    try {
      return new Request(signed.url.toString(), signed);
    } catch (e) {
      if (e instanceof TypeError) {
        return new Request(signed.url.toString(), Object.assign({ duplex: "half" }, signed));
      }
      throw e;
    }
  }
  async fetch(input, init) {
    for (let i = 0; i <= this.retries; i++) {
      const fetched = fetch(await this.sign(input, init));
      if (i === this.retries) {
        return fetched;
      }
      const res = await fetched;
      if (res.status < 500 && res.status !== 429) {
        return res;
      }
      await new Promise((resolve) => setTimeout(resolve, Math.random() * this.initRetryMs * Math.pow(2, i)));
    }
    throw new Error("An unknown error occurred, ensure retries is not negative");
  }
};
var AwsV4Signer = class {
  constructor({ method, url, headers, body, accesskeyID, secretAccessKey, sessionToken, service, region, cache, datetime, signQuery, appendSessionToken, allHeaders, singleEncode }) {
    if (url == null)
      throw new TypeError("url is a required option");
    if (accesskeyID == null)
      throw new TypeError("accesskeyID is a required option");
    if (secretAccessKey == null)
      throw new TypeError("secretAccessKey is a required option");
    this.method = method || (body ? "POST" : "GET");
    this.url = new URL(url);
    this.headers = new Headers(headers || {});
    this.body = body;
    this.accesskeyID = accesskeyID;
    this.secretAccessKey = secretAccessKey;
    this.sessionToken = sessionToken;
    let guessedService, guessedRegion;
    if (!service || !region) {
      [guessedService, guessedRegion] = guessServiceRegion(this.url, this.headers);
    }
    this.service = service || guessedService || "";
    this.region = region || guessedRegion || "us-east-1";
    this.cache = cache || /* @__PURE__ */ new Map();
    this.datetime = datetime || (/* @__PURE__ */ new Date()).toISOString().replace(/[:-]|\.\d{3}/g, "");
    this.signQuery = signQuery;
    this.appendSessionToken = appendSessionToken || this.service === "iotdevicegateway";
    this.headers.delete("Host");
    if (this.service === "s3" && !this.signQuery && !this.headers.has("X-Amz-Content-Sha256")) {
      this.headers.set("X-Amz-Content-Sha256", "UNSIGNED-PAYLOAD");
    }
    const params = this.signQuery ? this.url.searchParams : this.headers;
    params.set("X-Amz-Date", this.datetime);
    if (this.sessionToken && !this.appendSessionToken) {
      params.set("X-Amz-Security-Token", this.sessionToken);
    }
    this.signableHeaders = ["host", ...this.headers.keys()].filter((header) => allHeaders || !UNSIGNABLE_HEADERS.has(header)).sort();
    this.signedHeaders = this.signableHeaders.join(";");
    this.canonicalHeaders = this.signableHeaders.map((header) => header + ":" + (header === "host" ? this.url.host : (this.headers.get(header) || "").replace(/\s+/g, " "))).join("\n");
    this.credentialString = [this.datetime.slice(0, 8), this.region, this.service, "aws4_request"].join("/");
    if (this.signQuery) {
      if (this.service === "s3" && !params.has("X-Amz-Expires")) {
        params.set("X-Amz-Expires", "86400");
      }
      params.set("X-Amz-Algorithm", "AWS4-HMAC-SHA256");
      params.set("X-Amz-Credential", this.accesskeyID + "/" + this.credentialString);
      params.set("X-Amz-SignedHeaders", this.signedHeaders);
    }
    if (this.service === "s3") {
      try {
        this.encodedPath = decodeURIComponent(this.url.pathname.replace(/\+/g, " "));
      } catch (e) {
        this.encodedPath = this.url.pathname;
      }
    } else {
      this.encodedPath = this.url.pathname.replace(/\/+/g, "/");
    }
    if (!singleEncode) {
      this.encodedPath = encodeURIComponent(this.encodedPath).replace(/%2F/g, "/");
    }
    this.encodedPath = encodeRfc3986(this.encodedPath);
    const seenKeys = /* @__PURE__ */ new Set();
    this.encodedSearch = [...this.url.searchParams].filter(([k]) => {
      if (!k)
        return false;
      if (this.service === "s3") {
        if (seenKeys.has(k))
          return false;
        seenKeys.add(k);
      }
      return true;
    }).map((pair) => pair.map((p) => encodeRfc3986(encodeURIComponent(p)))).sort(([k1, v1], [k2, v2]) => k1 < k2 ? -1 : k1 > k2 ? 1 : v1 < v2 ? -1 : v1 > v2 ? 1 : 0).map((pair) => pair.join("=")).join("&");
  }
  async sign() {
    if (this.signQuery) {
      this.url.searchParams.set("X-Amz-Signature", await this.signature());
      if (this.sessionToken && this.appendSessionToken) {
        this.url.searchParams.set("X-Amz-Security-Token", this.sessionToken);
      }
    } else {
      this.headers.set("Authorization", await this.authHeader());
    }
    return {
      method: this.method,
      url: this.url,
      headers: this.headers,
      body: this.body
    };
  }
  async authHeader() {
    return [
      "AWS4-HMAC-SHA256 Credential=" + this.accesskeyID + "/" + this.credentialString,
      "SignedHeaders=" + this.signedHeaders,
      "Signature=" + await this.signature()
    ].join(", ");
  }
  async signature() {
    const date = this.datetime.slice(0, 8);
    const cacheKey = [this.secretAccessKey, date, this.region, this.service].join();
    let kCredentials = this.cache.get(cacheKey);
    if (!kCredentials) {
      const kDate = await hmac("AWS4" + this.secretAccessKey, date);
      const kRegion = await hmac(kDate, this.region);
      const kService = await hmac(kRegion, this.service);
      kCredentials = await hmac(kService, "aws4_request");
      this.cache.set(cacheKey, kCredentials);
    }
    return buf2hex(await hmac(kCredentials, await this.stringToSign()));
  }
  async stringToSign() {
    return [
      "AWS4-HMAC-SHA256",
      this.datetime,
      this.credentialString,
      buf2hex(await hash(await this.canonicalString()))
    ].join("\n");
  }
  async canonicalString() {
    return [
      this.method.toUpperCase(),
      this.encodedPath,
      this.encodedSearch,
      this.canonicalHeaders + "\n",
      this.signedHeaders,
      await this.hexBodyHash()
    ].join("\n");
  }
  async hexBodyHash() {
    let hashHeader = this.headers.get("X-Amz-Content-Sha256") || (this.service === "s3" && this.signQuery ? "UNSIGNED-PAYLOAD" : null);
    if (hashHeader == null) {
      if (this.body && typeof this.body !== "string" && !("byteLength" in this.body)) {
        throw new Error("body must be a string, ArrayBuffer or ArrayBufferView, unless you include the X-Amz-Content-Sha256 header");
      }
      hashHeader = buf2hex(await hash(this.body || ""));
    }
    return hashHeader;
  }
};
async function hmac(key, string) {
  const cryptoKey = await crypto.subtle.importKey(
    "raw",
    typeof key === "string" ? encoder.encode(key) : key,
    { name: "HMAC", hash: { name: "SHA-256" } },
    false,
    ["sign"]
  );
  return crypto.subtle.sign("HMAC", cryptoKey, encoder.encode(string));
}
async function hash(content) {
  return crypto.subtle.digest("SHA-256", typeof content === "string" ? encoder.encode(content) : content);
}
function buf2hex(buffer) {
  return Array.prototype.map.call(new Uint8Array(buffer), (x) => ("0" + x.toString(16)).slice(-2)).join("");
}
function encodeRfc3986(urlEncodedStr) {
  return urlEncodedStr.replace(/[!'()*]/g, (c) => "%" + c.charCodeAt(0).toString(16).toUpperCase());
}
function guessServiceRegion(url, headers) {
  const { hostname, pathname } = url;
  if (hostname.endsWith(".r2.cloudflarestorage.com")) {
    return ["s3", "auto"];
  }
  if (hostname.endsWith(".backblazeb2.com")) {
    const match2 = hostname.match(/^(?:[^.]+\.)?s3\.([^.]+)\.backblazeb2\.com$/);
    return match2 != null ? ["s3", match2[1]] : ["", ""];
  }
  const match = hostname.replace("dualstack.", "").match(/([^.]+)\.(?:([^.]*)\.)?amazonaws\.com(?:\.cn)?$/);
  let [service, region] = (match || ["", ""]).slice(1, 3);
  if (region === "us-gov") {
    region = "us-gov-west-1";
  } else if (region === "s3" || region === "s3-accelerate") {
    region = "us-east-1";
    service = "s3";
  } else if (service === "iot") {
    if (hostname.startsWith("iot.")) {
      service = "execute-api";
    } else if (hostname.startsWith("data.jobs.iot.")) {
      service = "iot-jobs-data";
    } else {
      service = pathname === "/mqtt" ? "iotdevicegateway" : "iotdata";
    }
  } else if (service === "autoscaling") {
    const targetPrefix = (headers.get("X-Amz-Target") || "").split(".")[0];
    if (targetPrefix === "AnyScaleFrontendService") {
      service = "application-autoscaling";
    } else if (targetPrefix === "AnyScaleScalingPlannerFrontendService") {
      service = "autoscaling-plans";
    }
  } else if (region == null && service.startsWith("s3-")) {
    region = service.slice(3).replace(/^fips-|^external-1/, "");
    service = "s3";
  } else if (service.endsWith("-fips")) {
    service = service.slice(0, -5);
  } else if (region && /-\d$/.test(service) && !/-\d$/.test(region)) {
    [service, region] = [region, service];
  }
  return [HOST_SERVICES[service] || service, region];
}

// index.js
var UNSIGNABLE_HEADERS2 = [
  // These headers appear in the request, but are not passed upstream
  "x-forwarded-proto",
  "x-real-ip",
  // We can't include accept-encoding in the signature because Cloudflare
  // sets the incoming accept-encoding header to "gzip, br", then modifies
  // the outgoing request to set accept-encoding to "gzip".
  // Not cool, Cloudflare!
  "accept-encoding"
];
var HTTPS_PROTOCOL = "https:";
var HTTPS_PORT = "443";
var RANGE_RETRY_ATTEMPTS = 3;
function filterHeaders(headers, env) {
  return new Headers(Array.from(headers.entries()).filter(
    (pair) => !UNSIGNABLE_HEADERS2.includes(pair[0]) && !pair[0].startsWith("cf-") && !("ALLOWED_HEADERS" in env && !env.ALLOWED_HEADERS.includes(pair[0]))
  ));
}
var my_proxy_default = {
  async fetch(request, env) {
    if (!["GET", "HEAD"].includes(request.method)) {
      return new Response(null, {
        status: 405,
        statusText: "Method Not Allowed"
      });
    }
    const url = new URL(request.url);
    url.protocol = HTTPS_PROTOCOL;
    url.port = HTTPS_PORT;
    let path = url.pathname.replace(/^\//, "");
    path = path.replace(/\/$/, "");
    const pathSegments = path.split("/");
    if (env.ALLOW_LIST_BUCKET !== "true") {
      if (env.BUCKET_NAME === "$path" && pathSegments.length < 2 || env.BUCKET_NAME !== "$path" && path.length === 0) {
        return new Response(null, {
          status: 404,
          statusText: "Not Found"
        });
      }
    }
    switch (env.BUCKET_NAME) {
      case "$path":
        url.hostname = env.B2_ENDPOINT;
        break;
      case "$host":
        url.hostname = url.hostname.split(".")[0] + "." + env.B2_ENDPOINT;
        break;
      default:
        url.hostname = env.BUCKET_NAME + "." + env.B2_ENDPOINT;
        break;
    }
    const headers = filterHeaders(request.headers, env);
    const endpointRegex = /^s3\.([a-zA-Z0-9-]+)\.backblazeb2\.com$/;
    const [, aws_region] = env.B2_ENDPOINT.match(endpointRegex);
    const client = new AwsClient({
      "accesskeyID": env.B2_APPLICATION_KEY_ID,
      "secretAccessKey": env.B2_APPLICATION_KEY,
      "service": "s3",
      "region": aws_region
    });
    const signedRequest = await client.sign(url.toString(), {
      method: request.method,
      headers
    });
    if (signedRequest.headers.has("range")) {
      let attempts = RANGE_RETRY_ATTEMPTS;
      let response;
      do {
        let controller = new AbortController();
        response = await fetch(signedRequest.url, {
          method: signedRequest.method,
          headers: signedRequest.headers,
          signal: controller.signal
        });
        if (response.headers.has("content-range")) {
          if (attempts < RANGE_RETRY_ATTEMPTS) {
            console.log(`Retry for ${signedRequest.url} succeeded - response has content-range header`);
          }
          break;
        } else if (response.ok) {
          attempts -= 1;
          console.error(`Range header in request for ${signedRequest.url} but no content-range header in response. Will retry ${attempts} more times`);
          if (attempts > 0) {
            controller.abort();
          }
        } else {
          break;
        }
      } while (attempts > 0);
      if (attempts <= 0) {
        console.error(`Tried range request for ${signedRequest.url} ${RANGE_RETRY_ATTEMPTS} times, but no content-range in response.`);
      }
      return response;
    }
    return fetch(signedRequest);
  }
};
export {
  my_proxy_default as default
};
/*! Bundled license information:

aws4fetch/dist/aws4fetch.esm.mjs:
  (**
   * @license MIT <https://opensource.org/licenses/MIT>
   * @copyright Michael Hart 2022
   *)
*/
//# sourceMappingURL=index.js.map

点击”部署”按钮

2. 配置环境变量

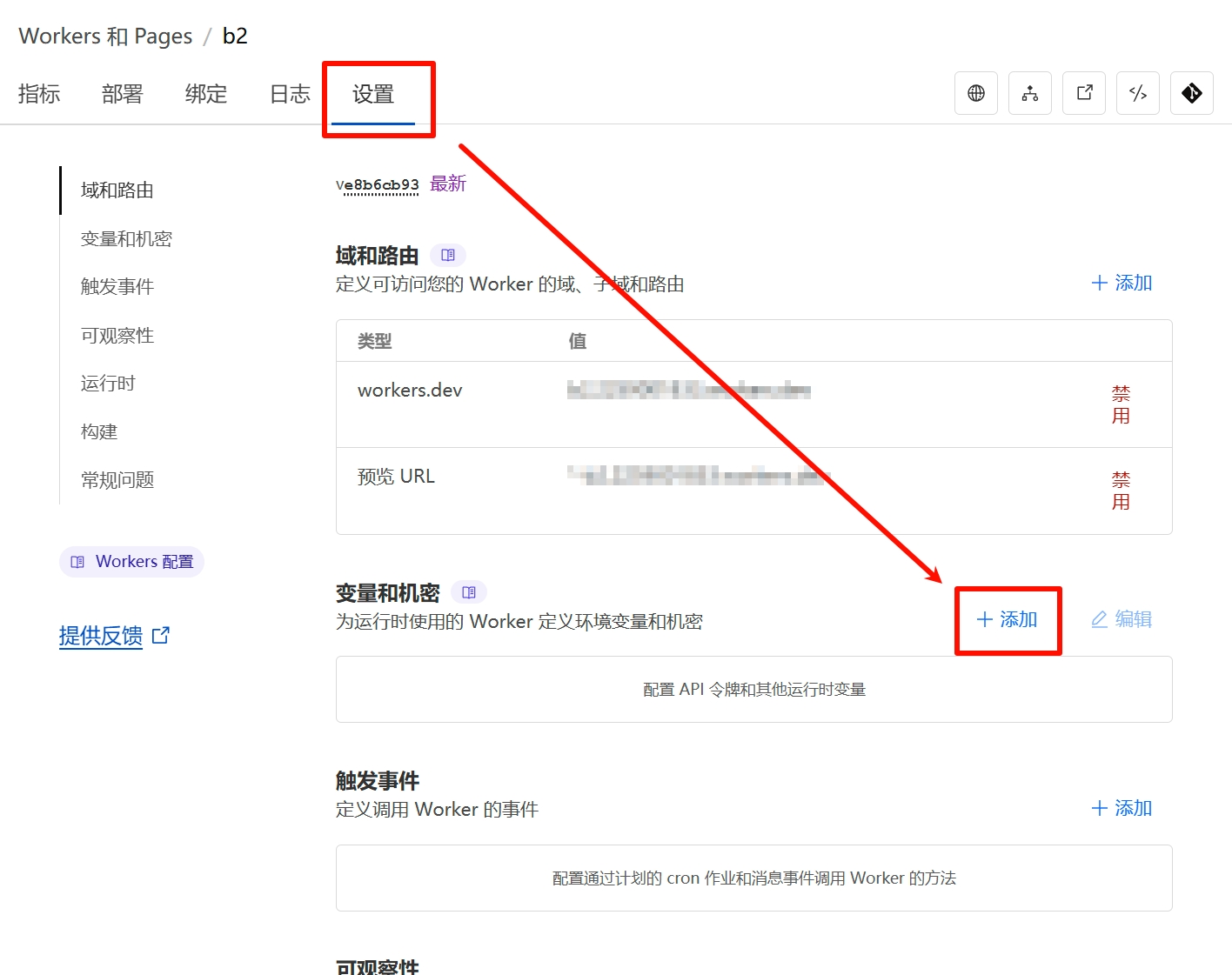

点击”设置”->”添加变量”
添加以下变量（都设为”纯文本”类型）：

变量名	值
ALLOW_LIST_BUCKET	false
BUCKET_NAME	你的存储桶的名字
B2_ENDPOINT	你的地区的endpoint（如 s3.ca-east-006.backblazeb2.com）
B2_APPLICATION_KEY_ID	你复制的KeyID
B2_APPLICATION_KEY	你复制的applicationKey

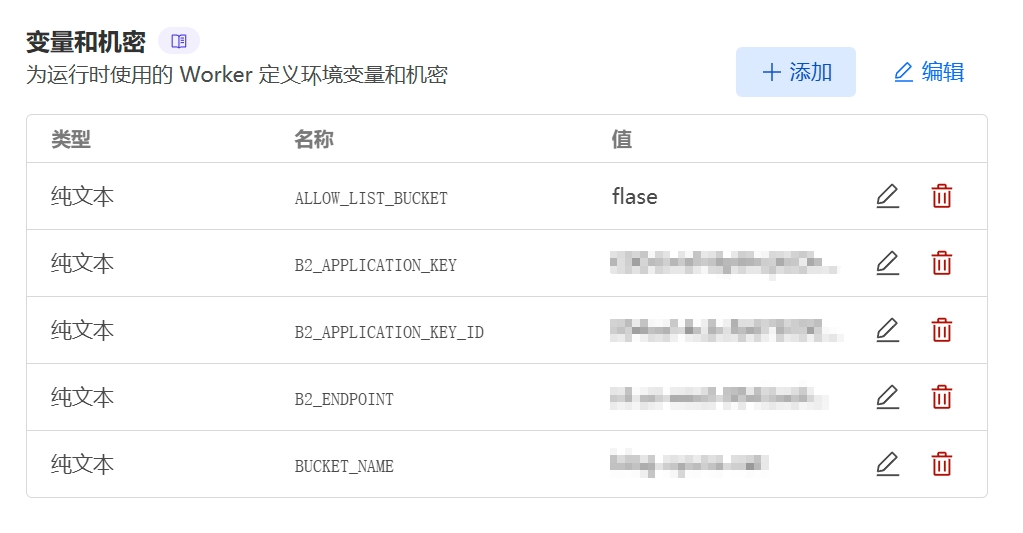

变量展示
3. 点击”保存”按钮

3. 配置自定义域名

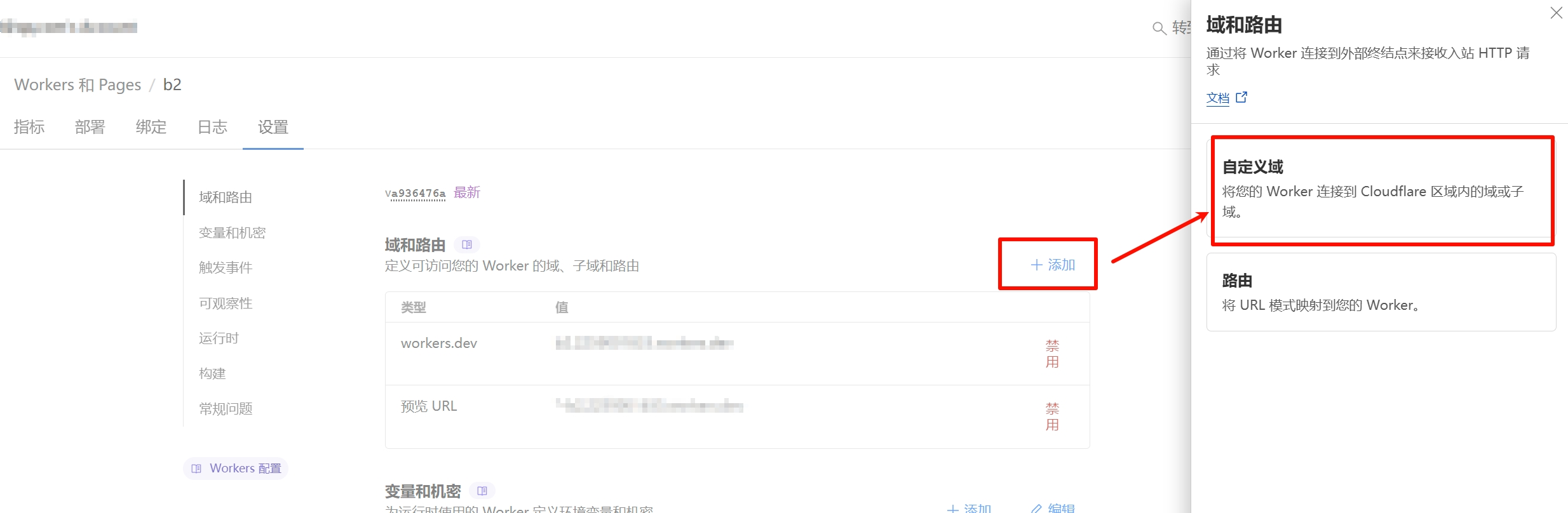

点击”设置”->”域和路由”->”添加”
输入您想使用的域名（如：b2.xyuns.cc）
按照提示完成DNS配置
点击”确认”按钮

步骤三：配置PicGo

1. 安装PicGo

访问PicGo官网下载并安装最新版本。

2. 安装S3插件

打开PicGo
点击”插件设置”
搜索”s3”并安装插件

3. 配置S3图床

点击”图床设置” -> “Amazon S3”
填写以下信息：

配置项	值
图床配置名	随便起
应用密钥ID	第二步保存的 keyID
应用密钥	第二步保存的 applicationKey
桶名	第一步创建的私密桶名
文件路径	{fullName} (我的是 {fullName} ，因为我上传前会把图片按日期和文章命名好)
地区	留空
自定义节点	第一步记下的 EndPoint (我的是 https://s3.us-west-004.backblazeb2.com)
代理	留空
自定义输出URL模板	第五步自定义的域名 (我的是 https://b2.xyuns.cc/{path} )
其他选项保持默认

点击”确定”保存设置

4. 修改B2存储桶CORS

本文以Windows系统为例

下载Backblaze B2 CLI工具，点击下载

打开命令行工具，输入以下命令

b2-windows.exe update-bucket Bucket --corsRules “[{"corsRuleName":"downloadFromAnyOriginWithUpload","allowedOrigins":["*"],"allowedHeaders":["authorization","content-type","x-bz-file-name","x-bz-content-sha1"],"allowedOperations":["b2_download_file_by_id","b2_download_file_by_name","b2_upload_file","b2_upload_part","s3_put","s3_post","s3_get","s3_delete"],"exposeHeaders":["ETag"],"maxAgeSeconds":3600}]”

将Bucket替换为你的Bucket名称
